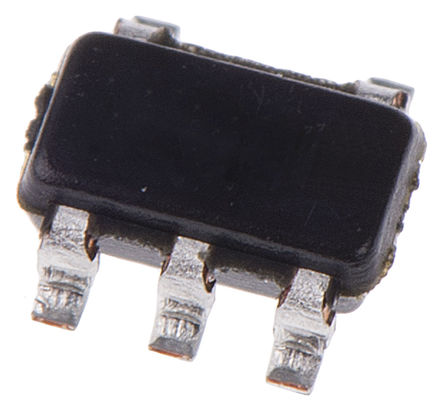

OPA820IDBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC18476376
Category:
Operational Amplifier, OP Amp IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA820IDBVT Operational Amplifier, Single, 1 Amplifier, 800MHz, 240V/µs, 5V to 12V, ± 2.5V to ± 6V, SOT-23
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.85

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA820IDBVT is an unity-gain stable voltage-feedback Operational Amplifier with a very low input noise voltage and high output current using a low 5.6mA supply current. At unity-gain, the OPA820 gives >800MHz bandwidth with <1dB peaking. The OPA820 complements this high-speed operation with excellent DC precision in a low-power device. A worst-case input offset voltage of ±750µV and an offset current of ±400nA give excellent absolute DC precision for pulse amplifier applications. Minimal input and output voltage swing headroom allow the OPA820 to operate on a single +5V supply with >2VPP output swing. While not a rail-to-rail (RR) output, this swing will support most emerging analog-to-digital converter (ADC) input ranges with lower power and noise than typical RR output op amps. Exceptionally low dG/dP (0.01%/0.03°) supports low-cost composite video line driver applications.
±110mA High output current
2.5nV/√Hz Low input noise
5.6mA Low supply current
±750µV Maximum 25°C input offset voltage
±400nA Maximum 25°C input offset current
85dB Typical CMRR
4µV/°C Typical offset drift
Green product and no Sb/Br

Show

OPA820IDBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Current	5.6 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	74 dB
Input Offset Drift	4.00 µV/K
Bandwidth	800 MHz
Slew Rate	240 V/μs
Gain Bandwidth Product	260 MHz
Input Offset Voltage	200 µV
Input Bias Current	9 µA
Available Channels	S, Q
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	800 MHz
Gain Bandwidth	280 MHz
Minimum CMRR Range	74 dB
Supply Voltage (Max)	12 V
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
