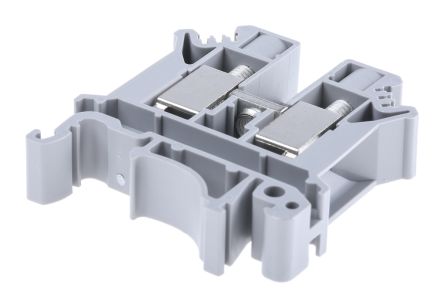

Image is for your reference only,please check specifications for details

3005073 - Phoenix
Manufacturer:
Phoenix
ManyChip's Part#:
MC10034936
Category:
Terminal Block, Connector Terminal
Datasheet:
Datasheet 3D Model
Description:
PHOENIX CONTACT 3005073 DIN Rail Mount Terminal Block, 2Positions, 20AWG, 6AWG, 16mm², Screw, 57A
Stock Locations:
Availability:
2,341 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.76

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 3005073 is a 2-position feed-through Terminal Block with PA (polyamide) insulator, grey colour. 0.5 to 16mm² cross-section, 20 to 6AWG wire size and 10.2mm width. NS 35/7, 5, NS 35/15, NS 32 mounting method and screw connection method. All universal terminal blocks in the UK series can also be used in the Ex e area according to IEC/EN 60079 as standard.
UL94V-0 Flammability rating
8kV Rated surge voltage
76A (with 16mm² conductor cross section) Maximum load current

Show

3005073 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, Screw
Pin Pitch	10.2 mm
Number of Contacts	2 Contact
Wire Gauge	6AWG ~ 24AWG
Voltage Rating (AC)	800 V
Current Rating	76 A
Number of Rows	2 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Current Rating (Max)	57 A
Voltage Rating (Max)	800 V
Voltage Rating	800 V
Operating Voltage (Max)	800 V
	Show
Size-Length	42.5 mm
Size-Width	10.2 mm
Size-Height	54.5 mm
Housing Color	Gray
Color	Gray
Housing Material	Nylon
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536904000
ECCN Code	EAR99
