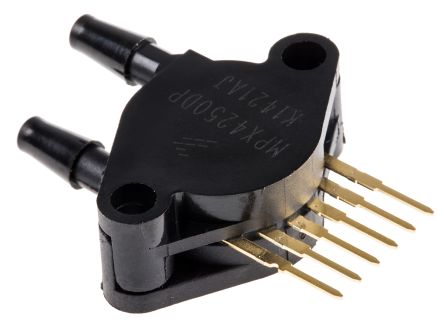

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MPX4250DP is a dual-port integrated silicon Pressure Sensor features on-chip signal conditioned, temperature compensated and calibrated. The MPX4250 series piezoresistive transducer is a state-of-the-art monolithic silicon pressure sensor is designed for a wide range of applications, particularly those employing a microcontroller or microprocessor with A/D inputs. This transducer combines advanced micromachining techniques, thin film metallization and bipolar processing to provide an accurate, high-level analogue output signal that is proportional to the applied pressure.
- Patented silicon shear stress strain gauge
- Offers reduction in weight and volume compared to existing hybrid modules
- Durable epoxy unibody element
- Available in differential configuration
MPX4250DP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | SIP-6 |
| Supply Voltage (DC) | 4.85V (min) |
| Halogen Free Status | Not Halogen Free |
| Output Voltage | 0.2V ~ 4.9V |
| Supply Current | 7.00 mA |
| Number of Positions | 6 Position |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1.4 % |
| Supply Voltage | 4.85V ~ 5.35V |
| Supply Voltage (Max) | 5.35 V |
| Supply Voltage (Min) | 4.85 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
