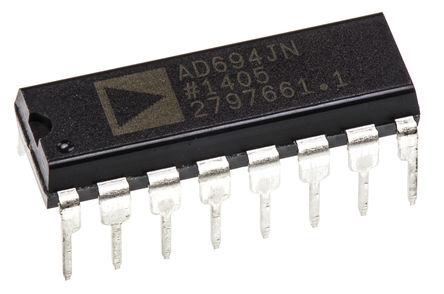

Image is for your reference only,please check specifications for details

AD694JNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC190393
Category:
Power Monitor
Package:
PDIP-16
Datasheet:
Datasheet 3D Model
Description:
Current Sense Amplifier, Current Transmitter, 1 Amplifier, 1.5nA, DIP, 16Pins, -40℃, 85℃
Stock Locations:
Availability:
370 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.82

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD694JNZ is a Monolithic Current that accepts high level signal inputs to drive a standard 4 to 20mA current loop for the control of valves, actuators and other devices commonly used in process control. The input signal is buffered by an input amplifier that can be used to scale the input signal or buffer the output from a current mode DAC. Precalibrated input spans of 0 to 2V and 0 to 10V are selected by simple pin strapping, other spans may be programmed with external resistors. The output stage compliance extends to within 2V of VS and its special design allows the output voltage to extend below common in dual supply operation. An alarm warns of an open 4 to 20mA loop or noncompliance of the output stage. Active laser trimming of the AD694"s thin film resistors results in high levels of accuracy without the need for additional adjustments and calibration.
Single or dual supply operation
Wide output compliance
Input buffer amplifier
Open-loop alarm
0.002% Typical nonlinearity
ESD sensitive device, take proper precaution while handling the device.

Show

AD694JNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	36.0V (max)
Output Voltage	2.10 V
Output Current	20 mA
Supply Current	23 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	90 dB
Quiescent Current	1.5 mA
Bandwidth	300 kHz
Input Offset Voltage	150 µV
Input Bias Current	1500 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage (Max)	36 V
Supply Voltage (Min)	4.5 V
Input Voltage	4.5V ~ 36V
	Show
Size-Length	21.34 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
