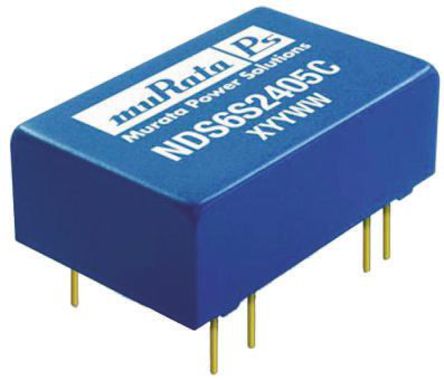

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NDS6S2405C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-24
Supply Voltage (DC)	24.0 V, 36.0 V (max)
Power Rating	6 W
Number of Outputs	1 Output
Input Voltage (DC)	18.0V ~ 36.0V
Output Voltage	5 V
Output Current	1.2 A
Output Power	6 W
Isolation Voltage	1.5 kV
Input Voltage (Max)	36 V
Input Voltage (Min)	18 V
Input Voltage (DC Max)	36 V
Input Voltage (DC Min)	18 v
Output Current (Max)	1.2 A
Input Power (Max)	6 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	18VDC ~ 36VDC
	Show
Size-Length	32 mm
Size-Width	20 mm
Size-Height	10 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
