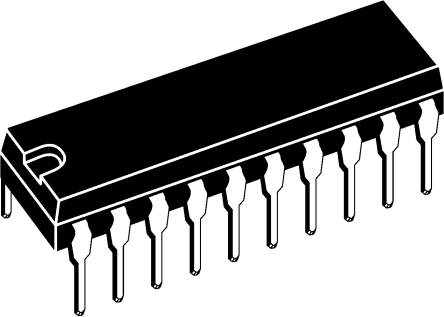

Image is for your reference only,please check specifications for details

AD7302BNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1202146
Category:
Digital to Analog, DAC IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7302BNZ Digital to Analog Converter, 8Bit, 833KSPS, Parallel, 2.7V to 5.5V, DIP, 20Pins
Stock Locations:
Availability:
282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.94

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7302BNZ is a dual 8-bit voltage out Digital-to-analog Converter (DAC) operates from a single 2.7 to 5.5V supply. Its on-chip precision output buffers allow the DAC outputs to swing rail to rail. The AD7302 has a parallel microprocessor and DSP-compatible interface with high speed registers and double buffered interface logic. Data is loaded to the registers on the rising edge of CS or WR and the A/B pin selects either DAC A or DAC B. Reference selection for AD7302 can be either an internal reference derived from the VDD or an external reference applied at the REFIN pin. The DAC can be simultaneously updated using the asynchronous LDAC input and can be cleared by using the asynchronous CLR input. The low power consumption of this part makes it ideally suited to portable battery operated equipment. The power consumption is less than 10mW at 3.3V, reducing to 3µW in power-down mode.
Internal and external reference capability
DAC power-down function
Parallel interface
On-chip output buffer rail-to-rail operation

Show

AD7302BNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Number of Outputs	2 Output
Supply Current	2.8 mA
Number of Channels	2 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Power Dissipation	0.9 W
Sample Rate	833 kHz
Resolution (Bits)	8.0 Bit
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	900 mW
Number of DACs	2 DAC
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	26.16 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
