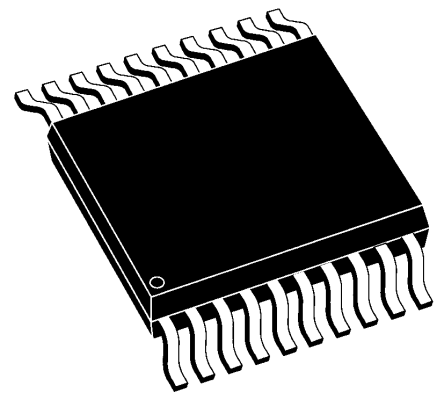

Image is for your reference only,please check specifications for details

AD73311ARSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC664703
Category:
CODEC
Package:
SSOP-20
Datasheet:
Datasheet 3D Model
Description:
Audio Codec 1 Analog to Digital Converter 1 Digital to Analog Converter 16Bit 20Pin SSOP
Stock Locations:
Availability:
950 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.29

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD73311ARSZ is a CMOS Analog Front End Processor for general purpose applications including speech and telephony. It features a 16-bit A/D conversion channel and a 16-bit D/A conversion channel. Each channel provides 70dB signal-to-noise ratio over a voice band signal bandwidth. The final channel bandwidth can be reduced and signal-to-noise ratio improved, by external digital filtering in a DSP engine. The AD73311 is suitable for a variety of applications in the speech and telephony area including low bit rate, high quality compression, speech enhancement, recognition and synthesis. The low group delay characteristic of the part makes it suitable for single or multichannel active control applications. The gains of the A/D and D/A conversion channels are programmable over 38dB and 21dB ranges respectively. An on-chip reference voltage is included to allow single supply operation.
Programmable input/output sample rates
Programmable input/output gain
64kS/s Maximum sample rate
-90dB Crosstalk

Show

AD73311ARSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Power Rating	50 mW
Supply Current	22.5 mA
Number of Channels	1 Channel
Number of Positions	20 Position
Number of Bits	16 Bit
Sample Rate	64 KSPS
Resolution (Bits)	16.0 Bit
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	1 Channel
Number of Output Channels	1 Channel
Number of DACs	1 DAC
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	7.2 mm
Size-Width	5.3 mm
Size-Height	1.75 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
