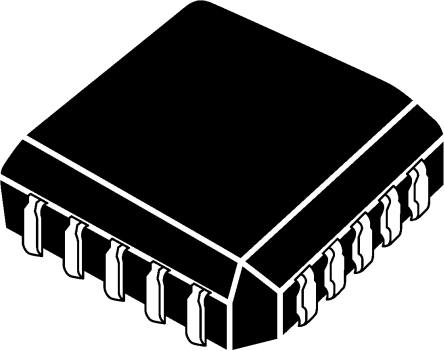

Image is for your reference only,please check specifications for details

AD7545AKPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1825650
Category:
Digital to Analog, DAC IC
Package:
PLCC-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7545AKPZ Digital to Analogue Converter, 12Bit, Parallel, 4.75V to 5.25V, 14.25V to 15.75V, LCC, 20Pins
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 68.93

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

If you need analog outputs such as audio and video from a given set of digital input, look no further than the AD7545AKPZ DAC converter, developed by Analog Devices. This device"s digital interface is parallel. It has a current output. This device is based on R-2R architecture. This DAC has a resolution of 12bit. This DAC has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device comes in tube packaging. This device uses a single power supply.

Show

AD7545AKPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PLCC-20
Number of Outputs	1 Output
Supply Current	2.00 mA
Number of Channels	1 Channel
Number of Bits	12 Bit
Power Dissipation	0.45 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	450 mW
Number of DACs	1 DAC
	Show
Size-Length	9.04 mm
Size-Width	9.04 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
