Description

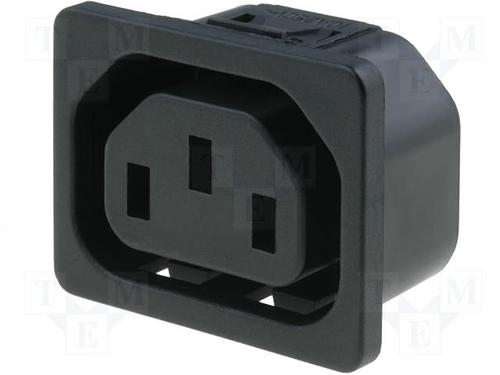

The 6600.4315 is a front-side snap-in panel-mount GST IEC Appliance Outlet with 6.8x0.8mm quick connect terminals. It is suitable for appliances with protection class I according to IEC 61140. Types for enhanced glow wire test requirements according IEC 60695-2-12 and -13 for the use in unattended household equipment according IEC 60335-1. The housing is made of black UL94V-0 polyamide 6. The connector is equipped with a notch intended for use with the latching cordset. The cord latching system prevents against accidental removal of the cordset. The integration of light pipes in the appliance outlet provides status indication in smart PDUs.
IP30 Protection rating

Show

6600.4315 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Snap-In, Quick Connect
Number of Contacts	3 Contact
Gender	Female
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	10 A
Insulation Resistance	10.0 MΩ
Flammability Rating	UL 94 V-0
Number of Positions	3 Position
Current Rating (Max)	15 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 VAC
	Show
Size-Length	35 mm
Size-Width	30.5 mm
Size-Height	28 mm
Color	Black
Material	Thermoplastic
Operating Temperature	-25℃ ~ 70℃
Housing Material	Thermoplastic
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536698000
ECCN Code	EAR99
