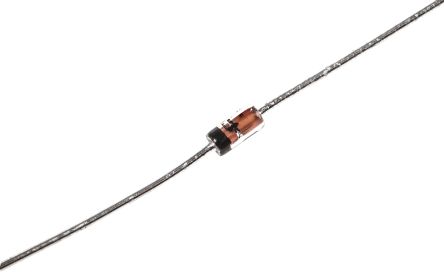

Image is for your reference only,please check specifications for details

1N914TR - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11927478
Category:
Small Signal Diode
Package:
DO-35
Datasheet:
Datasheet 3D Model
Description:
1N914 Series 100V 200mA Axial Through Hole Small Signal Diode - DO-35
Stock Locations:
Availability:
9,320 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.16

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

1N914TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	100 V
Current Rating	200 mA
Capacitance	4 pF
Output Current	200 mA
Load Current	300 mA
Number of Positions	2 Position
Forward Voltage	1 V
Polarity	Standard
Power Dissipation	500 mW
Thermal Resistance	300℃/W (RθJA)
Reverse recovery time	4 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	300 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	4.56 mm
Size-Width	1.91 mm
Size-Height	1.91 mm
Weight	36.287392 kg
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
