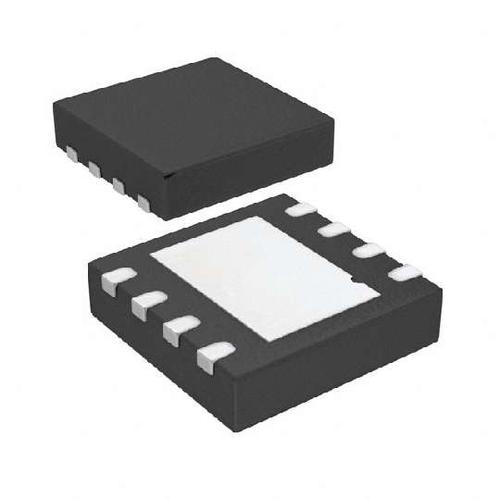

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 16 Bit Analog to Digital Converter 1 Input 1 SAR 8-LFCSP-WD (3x3)
AD7683BCPZRL7 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | LFCSP-8 |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 6 mW |
| Sample Rate | 100 ksps |
| Power Consumption | 4 mW |
| Resolution (Bits) | 16.0 Bit |
| Input Capacitance | 30.0 pF |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 6 mW |
| Number of Input Channels | 1 Channel |
| Input Voltage | 2.5V, 5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.73 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| Mil-Spec | No |
