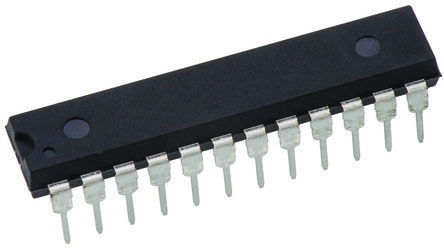

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- CMOS 4-Bit Latch / 4-to-16 Line Decoders
CD4515BE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 24 Pin |
| Case/Package | DIP-24 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Outputs | 16 Output |
| Number of Circuits | 1 Circuit |
| Number of Positions | 24 Position |
| Number of Bits | 4 Bit |
| Voltage Nodes | 5.00 V, 10.0 V, 15.0 V |
| Power Dissipation | 1150 mW |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 31.75 mm |
| Size-Width | 13.71 mm |
| Size-Height | 4.57 mm |
| Weight | 0.0597648810316 kg |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
