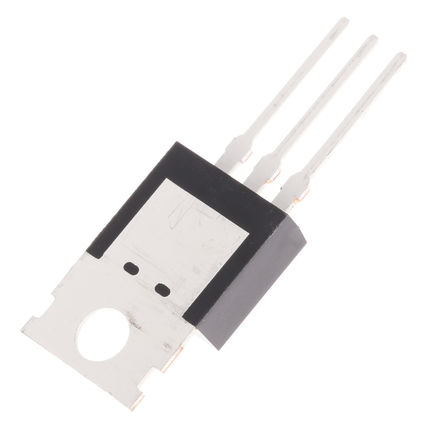

Image is for your reference only,please check specifications for details

LM7824CT - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC9271526
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR LM7824CT Linear Voltage Regulator, 7824, Fixed, 27V To 38V In, 24V And 1A Out, TO-220AB-3
Stock Locations:
Availability:
1,461 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM7824CT is a 3-terminal Positive Voltage Regulator features thermal overload protection and short-circuit protection. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as fixed voltage regulators, this device can be used with external components to obtain adjustable voltages and currents.
Output transistor safe operating area protection
±4% Output voltage tolerance

Show

LM7824CT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Output Voltage	24 V
Output Current	1 A
Number of Positions	3 Position
Quiescent Current	8 mA
voltage rating	2V @1A
Input Voltage (Max)	38 V
Input Voltage (Min)	27 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	≤40 V
	Show
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	16.51 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
