Description

The AD7705BNZ is a 2-channel 16-bit Sigma-Delta (Σ-Δ) Analogue to Digital Converter (ADC) for low frequency measurement applications. This 2-channel complete analogue front end device can accept low level input signals directly from a transducer and produce serial digital output. The selected input signal is applied to a proprietary, programmable-gain front end based around an analogue modulator. The first notch of this digital filter can be programmed via an on-chip control register, allowing adjustment of the filter cut-off and output update rate. It is ideal for use in smart, microcontroller or DSP-based systems. Gain settings, signal polarity and update rate selection can be configured in software using the input serial port. The parts contain self-calibration and system calibration options to eliminate gain and offset errors on the part itself or in the system.
16-bit No missing codes
0.003% Nonlinearity
Programmable gain front end gains from 1 to 128
3-wire serial interface
SPI®, QSPI™, MICROWIRE™ and DSP compatible
Schmitt-trigger input on SCLK
Ability to buffer the analogue input
1mW Maximum power dissipation
8µA Maximum standby current
ESD sensitive device, take proper precaution while handling the device.

Show

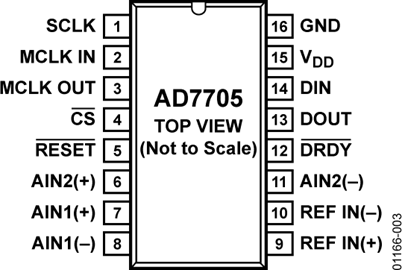

AD7705BNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	4.75V (min)
Supply Current	1.30 mA
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Number of Bits	16 Bit
Power Dissipation	1 W
Sample Rate	500 SPS
Resolution (Bits)	16.0 Bit
Input Capacitance	10.0 pF
Input Impedance	9.00 GΩ
Number of ADCs	1 ADC
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1 mW
Number of Input Channels	2 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	20.07 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2016/06/20
