AD7740YRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC909167
Category:
Analog to Digital, ADC IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7740YRMZ Voltage to Frequency Converter, 1MHz, 500kHz, 0.012%, 3V to 5.25V, SOIC, 8
Stock Locations:
Availability:
11 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.76

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details

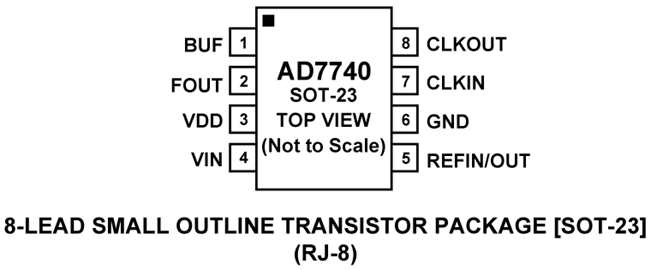

The AD7740 is a low-cost, ultrasmall synchronous Voltage-to-Frequency Converter (VFC). It works from a single 3.0 V to 3.6 V or 4.75 V to 5.25 V supply consuming 0.9 mA. The AD7740 is available in an 8-lead SOT-23 and also in an 8-lead MSOP package. Small package, low cost and ease of use were major design goals for this product. The part contains an on-chip 2.5 V bandgap reference but the user may overdrive this using an external reference. This external reference range includes VDD.
The full-scale output frequency is synchronous with the clock signal on the CLKIN pin. This clock can be generated with the addition of an external crystal (or resonator) or supplied from a CMOS-compatible clock source. The part has a maximum input frequency of 1 MHz.
For an analog input signal that goes from 0 V to VREF, the output frequency goes from 10% to 90% of fCLKIN. In buffered mode, the part provides a very high input impedance and accepts a range of 0.1 V to VDD – 0.2 V on the VIN pin. There is also an unbuffered mode of operation that allows VIN to go from –0.15 V to VDD + 0.15 V. The modes are interchangeable using the BUF pin.
The AD7740 (Y Grade) is guaranteed over the automotive temperature range of –40°C to +105°C. The AD7740 (K Grade) is guaranteed from 0°C to 85°C.
Product Highlights
1. The AD7740 is a single channel, single-ended VFC. It is available in 8-lead SOT-23 and 8-lead MSOP packages, and is intended for low-cost applications. The AD7740 offers considerable space saving over alternative solutions.
2. The AD7740 operates from a single 3.0 V to 3.6 V or 4.75 V to 5.25 V supply and consumes typically 0.9 mA when the input is unbuffered. It also contains an automatic power-down function.
3. The AD7740 does not require external resistors and capacitors to set the output frequency. The maximum output frequency is set by a crystal or a clock. No trimming or calibration is required.
4. The analog input can be taken to 150 mV below GND for true bipolar operation.
5. The specified voltage reference range on REFIN is from 2.5 V to the supply voltage, VDD.
Applications
Isolation of high common-mode voltages
Low-cost analog-to-digital conversion
Battery monitoring
Automotive sensing
### Features and Benefits
Synchronous operation
Full-scale frequency set by external system clock
8-lead SOT-23 and 8-lead MSOP packages
3 V or 5 V operation
Low power: 3 mW (Typ)
Nominal input range: 0 to VREF
True –150 mV capability without charge pump
VREF range: 2.5 V to VDD
Internal 2.5 V reference
1 MHz max input frequency
Selectable high impedance buffered input
Minimal external components required

Show

AD7740YRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Frequency	1 MHz
Supply Current	1.50 mA
Number of Circuits	1 Circuit
Number of Positions	8 Position
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
