- AD7788BRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC380900
-
Category:Analog to Digital, ADC IC
-
Package:MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD7788BRMZ Analog to Digital Converter, 16Bit, Single, 2.5V, 5.25V, MSOP
-
Stock Locations:
-
Availability:281 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.38
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details

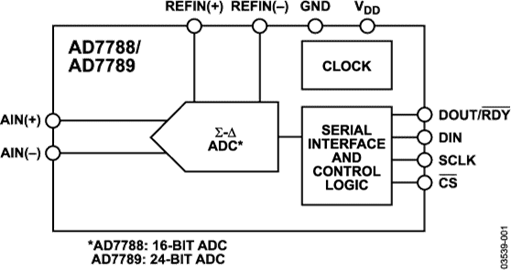

- The AD7788/AD7789 are low power, low noise, analog front ends for low frequency measurement applications. The AD7789 contains a low noise, 24-bit, ∑-∆ analog-to-digital converter (ADC) with one differential input. The AD7788 is a 16-bit version of the AD7789.
- The devices operate from an internal clock. Therefore, the user does not have to supply a clock source to the devices. The output data rate is 16.6 Hz, which gives simultaneous 50 Hz/60 Hz rejection.
- The devices operate with a single power supply from 2.5 V to 5.25 V. When operating from a 3 V supply, the power dissipation for the device is 225 µW maximum. The AD7788/AD7789 are available in a 10-lead MSOP.
- Applications
- Smart transmitters
- Battery applications
- Portable instrumentation
- Sensor measurement
- Temperature measurement
- Pressure measurement
- Weigh scales
- 4 to 20 mA loops
- ### Features and Benefits
- 16-bit resolution
- Power
- Supply: 2.5 V to 5.25 V operation
- Normal: 75 µA maximum
- Power-down: 1 µA maximum
- RMS noise: 1.5 µV
- 16-bit p-p resolution
- Integral nonlinearity: 3.5 ppm typical
- Simultaneous 50 Hz and 60 Hz rejection
- Internal clock oscillator
- VDD monitor channel
- 10-lead MSOP
AD7788BRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | MSOP-10 |
| Supply Voltage (DC) | 2.50V (min) |
| Supply Current | 80.0 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 10 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 0.225 W |
| Sample Rate | 16.6 SPS |
| Resolution (Bits) | 16.0 Bit |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 0.225 mW |
| Number of Input Channels | 1 Channel |
| Supply Voltage | 2.5V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 2.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2016/06/20 |
