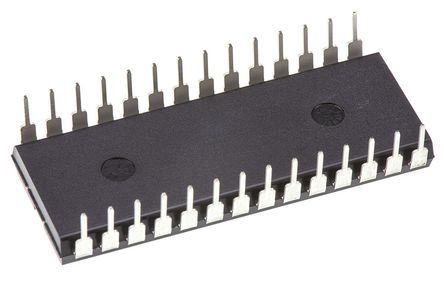

Image is for your reference only,please check specifications for details

AD7828KNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC4876536
Category:
Analog to Digital, ADC IC
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7828KNZ Analog to Digital Converter, 8Bit, 50KSPS, Single, 4.75V, 5.25V, DIP
Stock Locations:
Availability:
267 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 63.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

With this AD7828KNZ ADC from Analog Devices you will have no problem converting real world physical signals into a sequence of digital data. It has a single-ended input signal. Its maximum power dissipation is 80 mW. This device is based on Semiflash architecture. This device"s digital interface is parallel. This ADC has a resolution of 8bit. This ADC has an input voltage of 5 V. This ADC has a temperature range of 0 °C to 70 °C.

Show

AD7828KNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Supply Voltage (DC)	4.75V (min)
Supply Current	16.0 mA
Number of Channels	8 Channel
Number of Positions	28 Position
Number of Bits	8 Bit
Power Dissipation	50 mW
Sample Rate	50 ksps
Number of ADCs	1 ADC
Number of Inputs	8 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	80 mW
Number of Input Channels	8 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
Input Voltage	5 V
	Show
Size-Length	39.7 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99
HK STC License	NLR
