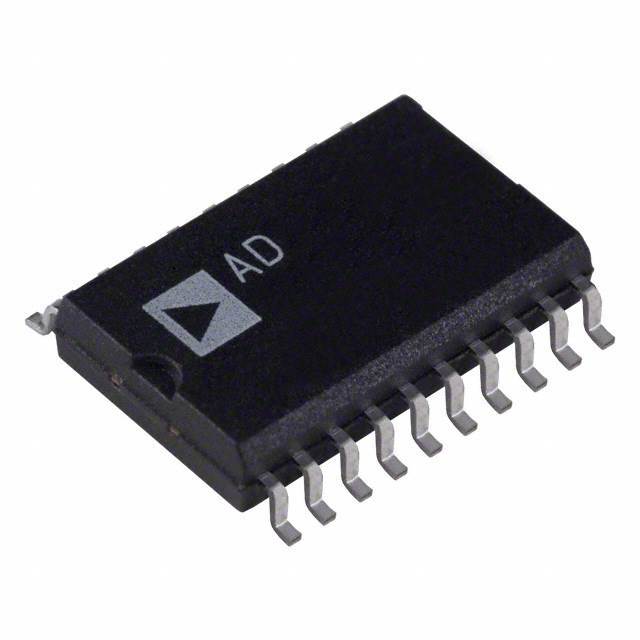

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The AD7943, AD7945 and AD7948 are fast 12-bit multiplying DACs that operate from a single +5 V supply (Normal Mode) and a single +3.3 V to +5 V supply (Biased Mode). The AD7943 has a serial interface, the AD7945 has a 12-bit parallel interface, and the AD7948 has an 8-bit byte interface. They will replace the industry-standard AD7543, AD7545 and AD7548 in many applications, and they offer superior speed and power consumption performance.
- FEATURES
- 12-Bit Multiplying DACs
- Guaranteed Specifications with +3.3 V/+5 V Supply
- 0.5 LSBs INL and DNL
- Low Power: 5 mW typ
- Fast Interface
- 40 ns Strobe Pulsewidth (AD7943)
- 40 ns Write Pulsewidth (AD7945, AD7948)
- Low Glitch: 60 nV-s with Amplifier Connected
- APPLICATIONS
- Battery-Powered Instrumentation
- Laptop Computers
- Upgrades for All 754x Series DACs (5 V Designs)
AD7945BR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Supply Voltage (DC) | 4.50V (min) |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 0.45 W |
| Sample Rate | 1.7 Msps |
| Resolution (Bits) | 12.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 450 mW |
| Number of DACs | 1 DAC |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 13 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| HK STC License | NLR |
