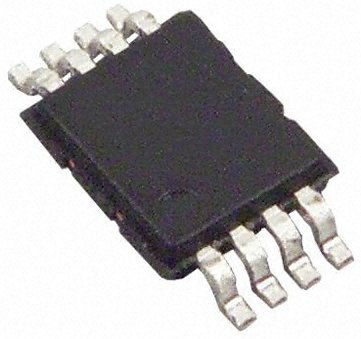

AD8022ARMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC142717
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8022ARMZ Operational Amplifier, Dual, 2 Amplifier, 130MHz, 50V/µs, ± 4.5V to ± 13V, MSOP, 8Pins
Stock Locations:
Availability:
234 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.93

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8022ARMZ is a high speed low noise voltage dual Feedback Operational Amplifier for use with active filters. Each amplifier consumes only 4.0mA of quiescent current, yet has only 2.5nV/√Hz of voltage noise. This dual amplifier provides wideband, low distortion performance, with high output current optimized for stability when driving capacitive loads. Manufactured on ADI"s high voltage generation of XFCB bipolar process, the AD8022 operates on a wide range of supply voltages. Fast over voltage recovery and wide bandwidth make the AD8022 ideal as the receive channel front end to an ADSL, VDSL or proprietary xDSL transceiver design. In an xDSL line interface circuit, the AD8022"s op amps can be configured as the differential receiver from the line transformer or as independent active filters.
Ease to use
Low noise and distortion
High speed
Settling time to 0.1%, 68ns
High output swing - ±10.1 on ±12V supply
1.5mV Typical low offset voltage
4mA/amplifier Low power consumption
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

AD8022ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	4 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1.2 W
Common Mode Rejection Ratio	98 dB
Input Capacitance	700 fF
Bandwidth	130 MHz
Slew Rate	50.0 V/μs
Gain Bandwidth Product	100 MHz
Input Impedance	20.0 kΩ
Input Offset Voltage	1.5 mV
Input Bias Current	5000 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	130 MHz
Power Dissipation (Max)	1200 mW
Minimum CMRR Range	95dB ~ 105dB
Supply Voltage (Max)	26 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
