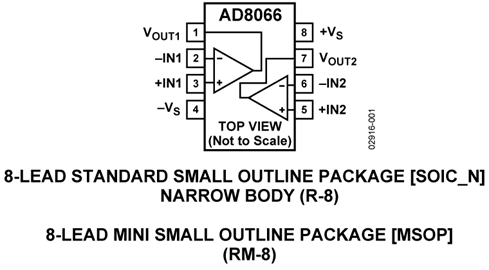

Image is for your reference only,please check specifications for details

AD8066ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC633496
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8066ARZ Operational Amplifier, Dual, 2 Amplifier, 145MHz, 180V/µs, 5V to 24V, SOIC, 8Pins
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.71

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8066ARZ is a 145MHz High Performance Dual FastFET™ Operational Amplifier with FET inputs offering high performance and ease of use. It is a dual voltage feedback amplifier that provides excellent overall performance. With a wide supply voltage range from 5 to 24V, the ability to operate on single supplies and a bandwidth of 145MHz, the AD8066 is designed to work in a variety of applications. For added versatility, the amplifiers also contain rail-to-rail outputs. The amplifier is developed in the proprietary XFCB process and allows exceptionally low noise operation (7.0nV/√Hz and 0.6fA/√Hz) as well as very high input impedance.
1pA Input bias current
High speed
Low noise
1.5mV Maximum low offset voltage
-100dB High common-mode rejection ratio
-88dBc SFDR at 1MHz
Low power
6.4mA/amplifier Typical supply current
No phase reversal
ESD sensitive device, take proper precaution while handling the device.

Show

AD8066ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.00 V
Supply Current	6.6 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	312 mW
Common Mode Rejection Ratio	100 dB
Input Capacitance	2.10 pF
Bandwidth	145 MHz
Slew Rate	180 V/μs
Gain Bandwidth Product	130 MHz
Input Impedance	1.00 TΩ
Input Offset Voltage	400 μV
Input Bias Current	3 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	145 MHz
Minimum CMRR Range	74 dB
Supply Voltage	5V ~ 24V
Supply Voltage (Max)	24 V
Supply Voltage (Min)	5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
