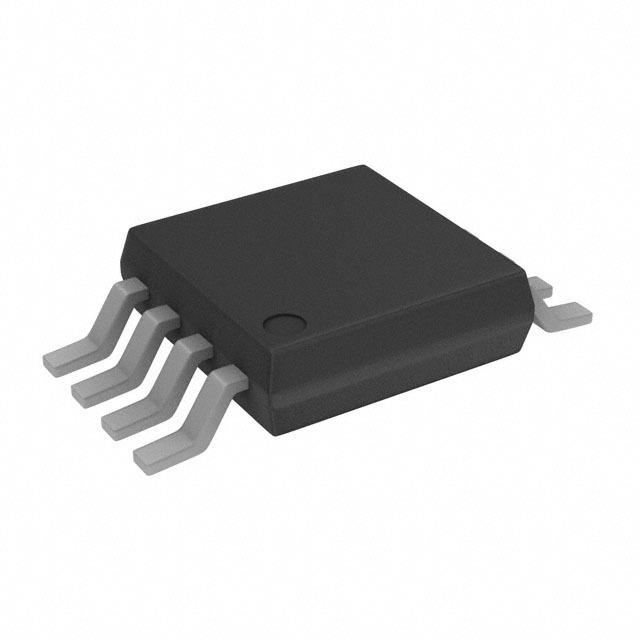

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This differential amplifier AD8132ARM differential amplifier, developed by Analog Devices, can use both channels in order to amplify an audio signal. It has a differential output. Its maximum power dissipation is 250 mW. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.35 V and maximum of ±5.5 V. This part has a temperature range of -40 °C to 125 °C. This device uses one or two power supplies. It has a single channel per chip.
AD8132ARM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Output Current | 50mA @5V |
| Supply Current | 12 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 0.25 W |
| Common Mode Rejection Ratio | 70 dB |
| Input Capacitance | 1.00 pF |
| Slew Rate | 1.20 kV/μs |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 3 µA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 360 MHz |
| Power Dissipation (Max) | 250 mW |
| Minimum CMRR Range | 60dB ~ 75dB |
| Supply Voltage (Max) | 10V ~ 15V |
| Show | |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
