AD8209WBRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1588385
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8209WBRMZ Differential Amplifier, High Voltage, 2 Amplifiers, 1mV, 80kHz, -40℃, 125℃
Stock Locations:
Availability:
260 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

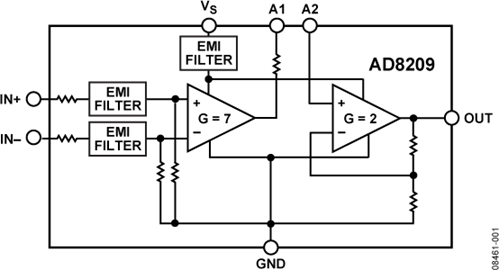

The AD8209WBRMZ is a high voltage precision single-supply Difference Amplifier for amplifying and low-pass filtering small differential voltages in the presence of a large common-mode voltage. The input common-mode voltage range extends from -2 to +45V at a single +5V supply. The AD8209 is qualified per AEC-Q100 specifications. The amplifier offers enhanced input overvoltage and ESD protection and includes EMI filtering. The AD8209 provides excellent AC and DC performance, minimizing errors in the application. The device also delivers a minimum CMRR of 80dB from DC to 10kHz. The AD8209 features an externally accessible 100kR resistor at the output of the preamplifier (A1), which can be used for low-pass filtering and for establishing gains other than 14.
EMI filters included
Low-pass filter (single-pole or two-pole)
Excellent AC and DC performance
Indefinite output short-circuit duration
±12V Differential input voltage
0.3V Reversed supply voltage protection
14 V/V Buffered output voltage gain
±8000V HBM ESD rating
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

AD8209WBRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	1.6 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	80 kHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	80 kHz
Input Offset Voltage	1 mV
Input Bias Current	50 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	80 kHz
Minimum CMRR Range	80 dB
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5V ~ 7V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	End of Life
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
