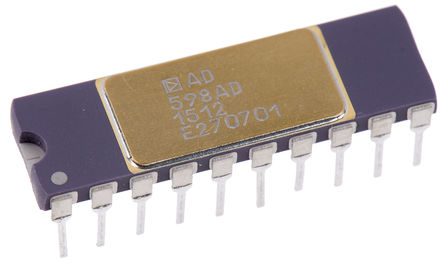

Image is for your reference only,please check specifications for details

AD598AD - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC147209
Category:
Amplifier, Buffer IC
Package:
DIP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD598AD Signal Conditioner, 20kHz, 13V, 36V, DIP, 20Pins, -40℃
Stock Locations:
Availability:
316 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 59.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD598AD is a Monolithic Linear Variable Differential Transformer (LVDT) Signal Conditioner used in conjunction with LVDTs to convert transducer mechanical position to a unipolar or bipolar DC voltage with a high degree of accuracy and repeatability. All circuit functions are included on the chip. With the addition of a few external passive components to set frequency and gain, the AD598 converts the raw LVDT secondary output to a scaled DC signal. The device can also be used with RVDT transducers. It contains a low distortion sine wave oscillator to drive the LVDT primary. The LVDT secondary output consists of two sine waves that drive the conditioner directly. The AD598 operates upon the two signals, dividing their difference by their sum, producing a scaled unipolar or bipolar DC output. The AD598 uses unique ratiometric architecture (patent pending) to eliminate several of the disadvantages associated with traditional approaches to LVDT interfacing.
Single chip solution, contains internal oscillator and voltage reference
No adjustments required
Insensitive to transducer null voltage
Insensitive to primary to secondary phase shifts
DC output proportional to position
Outstanding performance
0.05% of FS maximum linearity
611V Minimum output voltage
50ppm/8C of FS maximum gain drift
50ppm/8C of FS maximum offset drift

Show

AD598AD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	DIP-20
Supply Voltage (DC)	13.0V (min)
Operating Voltage	36.0V (max)
Output Voltage	24.0 V
Output Current	≥6.00 mA
Supply Current	15 mA
Number of Positions	20 Position
Bandwidth	20 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	36 V
Supply Voltage (Min)	13 V
	Show
Size-Length	25.4 mm
Size-Width	7.62 mm
Size-Height	2.16 mm
Operating Temperature	-40℃ ~ 85℃
Temperature Coefficient	±250 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
