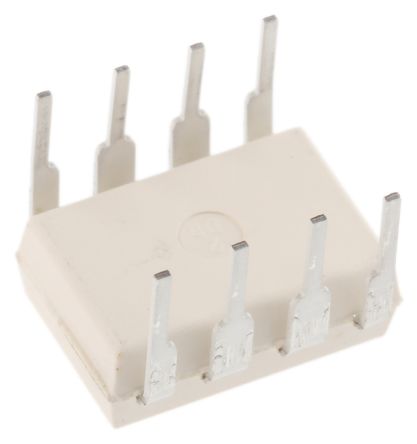

- FOD3180 - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC8633329
-
Category:Optocoupler, Optoisolator
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler Drive Push-Pull 1CH 20V 1500V 8Pin PDIP Bag
-
Stock Locations:
-
Availability:1,087 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.15
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The FOD3180 is a 2A output current high-speed MOSFET Gate Drive Optocoupler consists of a aluminium gallium arsenide (AlGaAs) LED optically (LED) coupled to a CMOS detector with PMOS and NMOS output power transistors integrated circuit power stage. It is ideally suited for high frequency driving of power MOSFETs used in Plasma Display Panels (PDPs), motor control inverter applications and high performance DC-DC converters. The device is packaged in an 8-pin dual in-line housing compatible with 260°C reflow processes for lead free solder compliance.
FOD3180 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Rise/Fall Time | 75ns, 55ns |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Forward Voltage | 1.43 V |
| Power Dissipation | 295 mW |
| Rise Time | 75 ns |
| Isolation Voltage | 5000 Vrms |
| Forward Current | 25 mA |
| Input Current (Min) | 25 mA |
| Maximum Forward Voltage (Max) | 1.8 V |
| Forward Current (Max) | 25 mA |
| Fall Time | 55 ns |
| Fall Time (Max) | 55 ns |
| Fall Time (Max) | 75 ns |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 295 mW |
| Show | |
| Operating Temperature | -40℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
