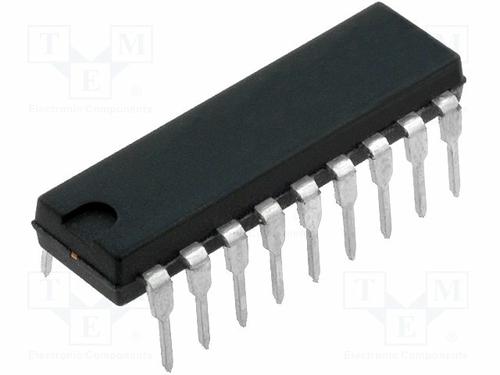

HT12D - Holtek
Manufacturer:
Holtek
ManyChip's Part#:
MC15933583
Category:
Specialty Application IC
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Special Function IC, Decoder, 2/12 Series, CMOS, 2.4V to 12V, DIP-18
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HT12D is a 2^12 decoder in 18 pin DIP package. This decoder is a series of CMOS LSIs for remote control system applications. It is paired with Holtek"s 2^12 encoder. For proper operation, a pair of encoder/decoder with same number of addresses and data format should be chosen. The decoder receives serial addresses and data from programmed 2^12 encoder that is transmitted by a carrier using an RF or an IR transmission medium. It compares serial input data three times continuously with its local address. If no error or unmatched codes are found, the input data codes are decoded and then transferred to output pins. The HT12D is capable of decoding information that consists of N bits of address and 12 N bits of data.
8 address bits and 4 data bits
Operating voltage range from 2.4V to 12V
Low power and high noise immunity CMOS technology
Low standby current and minimum external components
Capable of decoding 12bits of information
Binary address setting
Built-in oscillator needs only 5% resistor
Valid transmission indicator
Oscillator frequency of 150KHz
Operating temperature range from -20°C to 75°C

Show

HT12D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP
Frequency	150 kHz
Supply Voltage (DC)	2.40V (min)
Supply Current	200 µA
Number of Positions	18 Position
Number of Bits	12 Bit
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	2.4V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	2.4 V
	Show
Operating Temperature	-20℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
