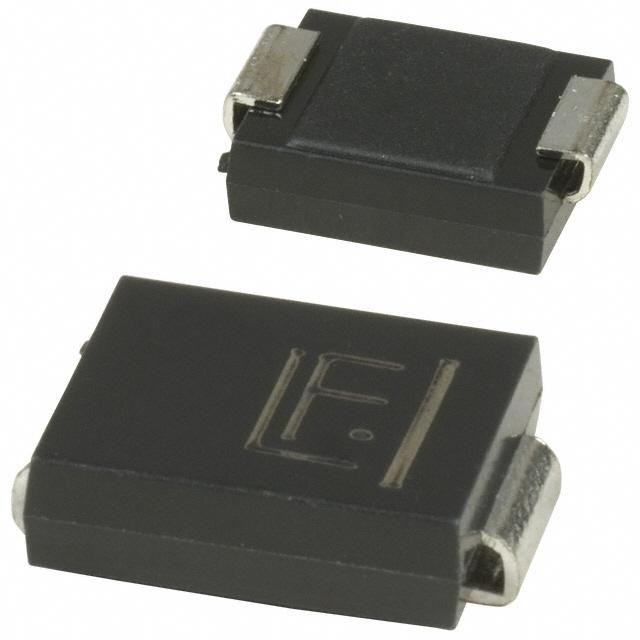

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- FEATURES
- • RoHS compliant
- • For surface mounted applications in order to optimize board space
- • Low profile package
- • Built-in strain relief
- • Glass passivated junction
- • Low inductance
- • Excellent clamping capability
- • Repetition Rate(duty cycle): 0.05%
- • Fast response time: typically less than 1.0ps from 0 Volts to BV min.
- • Typical IR less than 1mA above 10V
- • High temperature soldering: 250˚C/10 seconds at terminals
- • Plastic package has Underwriters Laboratory Flammability 94V-O
SMCJ36CA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | DO-214AB |
| Voltage Rating (DC) | 36.0 V |
| Capacitance | 1200 pF |
| Power Rating | 1.50 kW |
| Breakdown Voltage | 42.1 V |
| Number of Positions | 2 Position |
| Power Dissipation | 1.5 kW |
| Clamping Voltage | 58.1 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 44.2 V |
| Peak Pulse Power | 1500 W |
| Min Breakdown Voltage | 40 V |
| Reverse Breakdown Voltage | 40 V |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 65 ℃ |
| Junction Temperature | -65℃ ~ 150℃ |
| Show | |
| Size-Length | 8.13 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.62 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2014/12/17 |
| ECCN Code | EAR99 |
