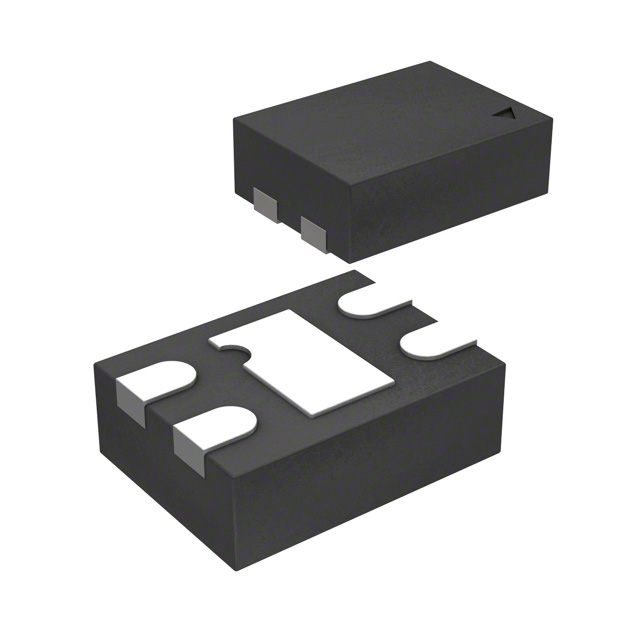

Image is for your reference only,please check specifications for details

MIC94082YFT TR - Micrel
Manufacturer:
Micrel
ManyChip's Part#:
MC101857642
Category:
Power Distribution
Package:
UFDFN-4
Datasheet:
Datasheet 3D Model
Description:
MIC94082 Series 1Channel 5.5V 2A Surface Mount High Side Switch - MLF-4
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.45

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC94082YFT TR is a high-side Power Switch designed to operate from 1.7 to 5.5V input voltage. The load switch pass element is an internal 67mR RDSON P-Channel MOSFET which enables the device to support up to 1.5A of continuous current. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage. An active pull-down on the enable input keeps the MIC940802 in a default OFF state until the enable pin is pulled above 1.25V. Internal level shift circuitry allows low voltage logic signals to switch higher supply voltages. The enable voltage can be as high as 5.5V and is not limited by the input voltage. The MIC94080/1/2/3/4/5 operating voltage range makes them ideal for Lithium ion and NiMH/NiCad/Alkaline battery powered systems, as well as non-battery powered applications. The devices provide low quiescent current and low shutdown current to maximize battery life.
Internal level shift for CMOS/TTL control logic
Ultralow quiescent current
Micro-power shutdown current
Ultra fast turn off time

Show

MIC94082YFT TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	UFDFN-4
Number of Outputs	1 Output
Input Voltage (DC)	5.50 V
Number of Positions	4 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.7V ~ 5.5V
Input Voltage	5.5 V
	Show
Operating Temperature	-40℃ ~ 85℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
