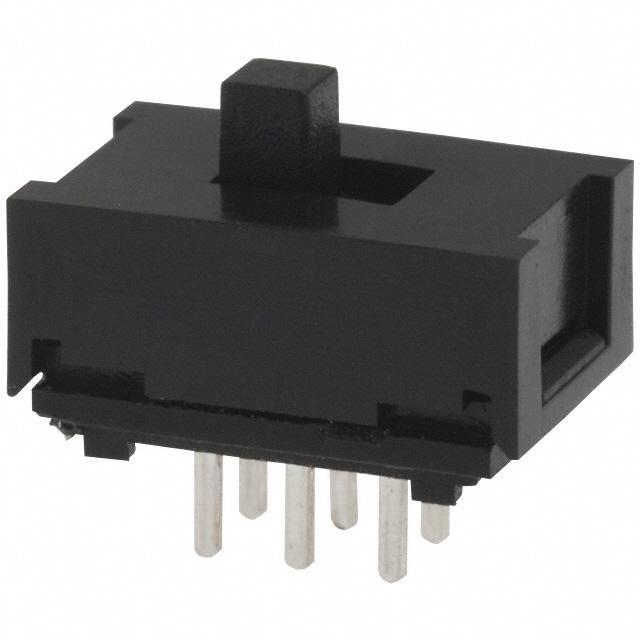

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

MMS22 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Contact Plating	Silver
Voltage Rating (DC)	30 V
Actuator Type	Standard
Current Rating	100mA (DC)
Number of Rows	2 Row
Orientation	Vertical
Contacts Type	DPDT
Flammability Rating	UL 94 HB
Number of Positions	2 Position
Contact Current Rating	.1 A
Current Rating (Max)	0.1A @30VAC, 30VDC
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-10 ℃
Maximum Contact Resistance (Max)	30 mΩ
	Show
Size-Length	11 mm
Size-Width	7.31 mm
Size-Height	7.7 mm
Contact Material	Copper Alloy
Operating Temperature	-20℃ ~ 60℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8536509065
ECCN Code	EAR99
