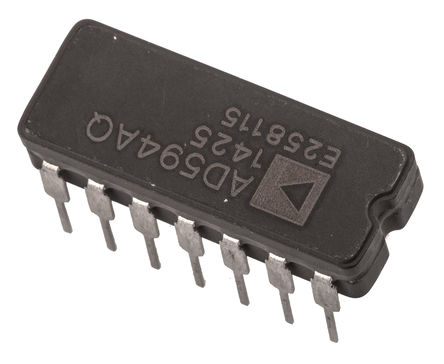

AD594AQ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC742167
Category:
Temperature Sensor
Package:
CDIP-14
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD594AQ Temperature Sensor IC, Voltage, ± 3℃, 0 °C, 300℃, DIP, 14Pins
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 38.53

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD594AQ is a Thermocouple Amplifier with cold junction compensator on a monolithic chip. It combines an ice point reference with a pre-calibrated amplifier to produce a high level (10mV/°C) output directly from a thermocouple signal. Pin-strapping options allow it to be used as a linear amplifier-compensator or as a switched output set point controller using either fixed or remote set point control. It can be used to amplify its compensation voltage directly, thereby converting it to a stand-alone Celsius transducer with a low impedance voltage output. Includes a thermocouple failure alarm that indicates if one or both thermocouple leads become open. The alarm output has a flexible format which includes TTL drive capability. This is pre-calibrated by laser wafer trimming to match the characteristic of type J (iron-constantan) thermocouples and this is laser trimmed for type K (chromel-alumel) inputs.
Can be used with type-T thermocouple input
10mV/8C Low impedance voltage output
Built-in ice point compensation
+5 to 615V Wide power supply range
<1mW Typical low power
Thermocouple failure alarm
Self-contained Celsius thermometer operation
High impedance differential input
Side-brazed DIP or low cost CERDIP
It may be permanently damaged if they are grounded or connected to a low impedance. Internally frequency compensated for feedback ratios (corresponding to normal signal gain) of 75 or more.

Show

AD594AQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	CDIP-14
Supply Voltage (DC)	5.00V (min)
Output Voltage	13 V
Output Current	5 mA
Supply Current	300 µA
Number of Positions	14 Position
Bandwidth	15 kHz
Gain Bandwidth Product	15 kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±3℃ (Max)
Supply Voltage	5V ~ 15V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	5 V
	Show
Size-Length	19.55 mm
Size-Width	6.6 mm
Size-Height	3.76 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
