AD8302ARU - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC15779773
Category:
Detector chip
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
Analog Devices Logarithmic Amplifiers 2.7GHz RF/IF GAIN PHASE DETECTOR
Stock Locations:
Availability:
3,434 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 25.46

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
**
Monolithic Silicon Bipolar, Measurement of Amplitude / Phase*
**
**
The AD8302 is a fully integrated RF IC for measuring amplitude and the phase between two independent input signals. The device can be used from low frequencies up to 2.7 GHz.
The AD8302 integrates two closely matched wideband logarithmic amplifiers, a wideband linear multiplier / phase detector, precision 1.8 V reference, and analog output scaling circuits.
The applied input signal can range from -60 dBm to 0 dBm (ref 50 Ω), which corresponds to a 60 dB dynamic range.
The AD8302 output provides an accurate amplitude measurement over ±30 dB range scaled to 30 mV/dB and the phase measurement over a 0 to 180° range scaled to 10 mV/°.
The device has been tested for use over the common Cellular bands (900 MHz, 1.8 GHz, 2.2 GHz) and specified for operation out to 2.7 GHz.

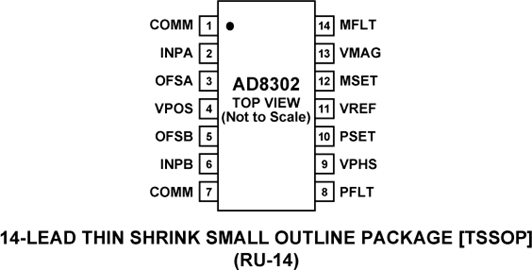

The AD8302 is supplied in 14-lead Thin Shrunk Small Outline (TSSOP) package, and fully specified over -40 to 85°C temperature range.
### Features and Benefits
Measures Independently both Gain/Loss and Phase
Operation from Low frequencies up to 2.7GHz
Dual Matched Logarithmic Amplifiers with Phase Detector
Gain Measurement range -30 to +30dB
Phase Measurement range from 0 to
180 degree
Integrated Voltage Reference and Output Voltage Circuits
Single 2.7-5.5 V Supply

Show

AD8302ARU Specifications
