AD8332ARUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC250608
Category:
Amplifier, Buffer IC
Package:
TSSOP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8332ARUZ Programmable/Variable Amplifier, 1Channels, 2 Amplifier, 100MHz, -40℃, 85℃, 4.5V to 5.5V
Stock Locations:
Availability:
291 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.59

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

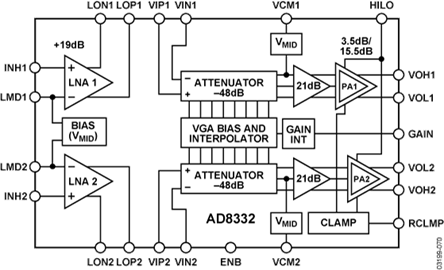

The AD8332ARUZ is an ultralow noise linear-in-dB Variable Gain Amplifier (VGA) optimized for ultrasound systems, it is usable as a low noise variable gain element at frequencies up to 120MHz. Included in each channel are an ultralow noise preamp (LNA), an X-AMP® VGA with 48dB of gain range and a selectable gain postamp with adjustable output limiting. The LNA gain is 19dB with a single-ended input and differential outputs. Using a single resistor, the LNA input impedance can be adjusted to match a signal source without compromising noise performance. The 48dB gain range of the VGA makes these devices suitable for a variety of applications. Excellent bandwidth uniformity is maintained across the entire range. The gain control interface provides precise linear-in-dB scaling of 50dB/V for control voltages between 40mV and 1V. Factory trim ensures excellent part-to-part and channel-to-channel gain matching.
Active input impedance matching
145mW/channel Low power
48nV/√Hz Typical low output-referred noise
Single 5V supply operation

Show

AD8332ARUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	TSSOP-28
Supply Current	58.0 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	28 Position
Power Dissipation	0.96 W
Bandwidth	100 MHz
Slew Rate	650 V/μs
Gain Bandwidth Product	130 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	100 MHz
Power Dissipation (Max)	960 mW
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5V ~ 7V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
