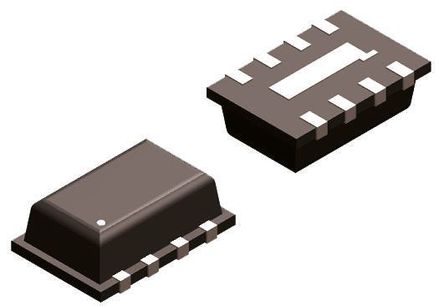

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8353ACPZ is a broadband RF Gain Block operates at frequencies from 1MHz up to 2.7GHz. The AD8353 is a fixed-gain linear amplifier intended for use in a wide variety of wireless devices, including cellular, broadband, CATV and LMDS/MMDS applications. By taking advantage of ADI"s high performance, complementary Si bipolar process, these gain blocks provide excellent stability over process, temperature and power supply. This amplifier is single-ended and internally matched to 50R with a return loss of greater than 10dB over the full operating frequency range. The AD8353 provides linear output power of 9dBm with 20dB of gain at 900MHz when biased at 3V and an external RF choke is connected between the power supply and the output pin. The DC supply current is 42mA. At 900MHz, the output third-order intercept (OIP3) is greater than 23dBm and is 19dBm at 2.7GHz. The noise figure is 5.3dB at 900MHz. The reverse isolation (S12) is -36dB at 900MHz and -30dB at 2.7GHz.
Fixed gain of 20dB
Linear output power up to 9dBm
Input/output internally matched to 50R
Temperature and power supply stable

Show

AD8353ACPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	LFCSP
Supply Voltage (DC)	2.70V (min)
Supply Current	42 mA
Number of Positions	8 Position
Power Dissipation	812 mW
Bandwidth	2.6 GHz
Output Power	7.5 dBm
Gain	20 dB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.3 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	2 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
