Description

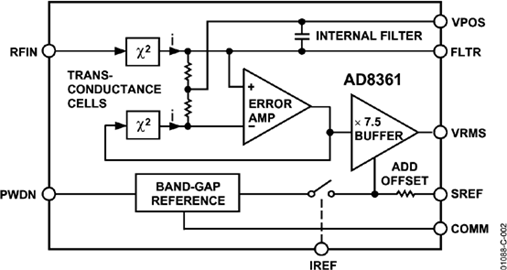

The AD8361ARMZ is a TruPwr™ Power Detector for use in high frequency receiver and transmitter signal chains up to 2.5GHz. It is very easy to apply. It requires a single supply only between 2.7 and 5.5V, a power supply decoupling capacitor and an input coupling capacitor in most applications. The output is a linear-responding DC voltage with a conversion gain of 7.5V/Vrms. An external filter capacitor can be added to increase the averaging time constant. This detector is intended for true power measurement of simple and complex waveforms. The device is particularly useful for measuring high crest-factor (high peak-to-rms ratio) signals, such as CDMA and W-CDMA. It has three operating modes to accommodate a variety of analogue-to-digital converter requirements.
Calibrated rms response
Excellent temperature stability
Up to 30dB input range at 2.5GHz
±0.25dB Linear response up to 2.5GHz
Low power
Rapid power-down to less than 1µA
ESD sensitive device, take proper precaution while handling the device.

Show

AD8361ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Frequency	100MHz ~ 2.5GHz
Supply Voltage (DC)	5.50V (max)
Supply Current	1.1 mA
Number of Positions	8 Position
Power Dissipation	200 mW
Bandwidth	2.50 GHz
Thermal Resistance	200 ℃/W
Input Power (Max)	6 dBm
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	200 mW
Accuracy	±0.25 dB
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Size-Thickness	1.10 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
