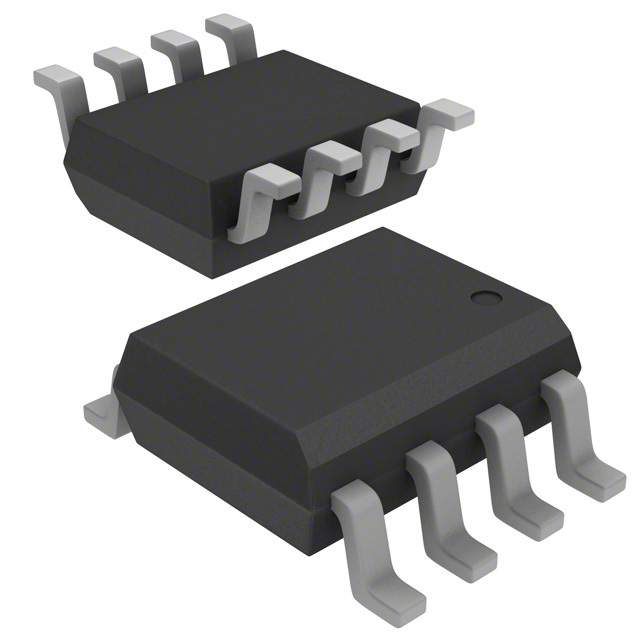

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The AD9631 and AD9632 are very high speed and wide band width amplifiers. They are an improved performance alternative to the AD9621 and AD9622. The AD9631 is unity gain stable. The AD9632 is stable at gains of 2 or greater. Using a voltage feedback architecture, the AD9631/AD9632’s exceptional settling time, bandwidth, and low distortion meet the requirements of many applications that previously depended on current feedback amplifiers. Its classical op amp structure works much more predictably in many designs.
- FEATURES
- Wide Bandwidth
- AD9631, G = +1
- AD9632, G = +2
- Small Signal
- 320 MHz
- 250 MHz
- Large Signal (4 V p-p)
- 175 MHz
- 180 MHz
- Ultralow Distortion (SFDR), Low Noise
- –113 dBc Typ @ 1 MHz
- –95 dBc Typ @ 5 MHz
- –72 dBc Typ @ 20 MHz
- 46 dBm Third Order Intercept @ 25 MHz
- 7.0 nV/÷Hz Spectral Noise Density
- High Speed
- Slew Rate 1300 V/s
- Settling 16 ns to 0.01%, 2 V Step
- 3 V to 5 V Supply Operation
- 17 mA Supply Current
- APPLICATIONS
- ADC Input Driver
- Differential Amplifiers
- IF/RF Amplifiers
- Pulse Amplifiers
- Professional Video
- DAC Current to Voltage
- Baseband and Video Communications
- Pin Diode Receivers
- Active Filters/Integrators/Log Amps
AD9631AR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Output Current | 70.0 mA |
| Supply Current | 17 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 900 mW |
| Common Mode Rejection Ratio | 90 dB |
| Input Capacitance | 1.20 pF |
| Slew Rate | 1.30 kV/μs |
| Gain Bandwidth Product | 130 MHz |
| Input Impedance | 500 kΩ |
| Input Offset Voltage | 3 mV |
| Input Bias Current | 2 µA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| 3dB Bandwidth | 320 MHz |
| Power Dissipation (Max) | 900 mW |
| Minimum CMRR Range | 70 dB |
| Supply Voltage (Max) | 12 V |
| Supply Voltage (Min) | 6 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.5 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| ECCN Code | EAR99 |
