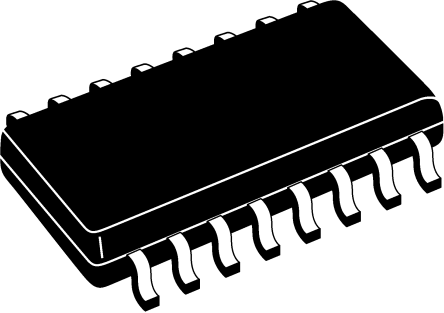

Image is for your reference only,please check specifications for details

TL1451ACD - TI
Manufacturer:
TI
ManyChip's Part#:
MC45277432
Category:
Voltage Regulator
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
DC-DC Controller (External Switch) Dual Channel Controller with Wide Input Voltage Range DC DC Cntrlr Dual-OUT PWM DC to DC Controller/Step Up/Step Down 3.6V to 50V Input 16Pin SOIC Tube
Stock Locations:
Availability:
377 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.79

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL1451ACD is a 2-channel Pulse Width Modulation (PWM) Controller with wide input voltage range. It incorporates on a single monolithic chip all the functions required in the construction of two pulse-width-modulation (PWM) control circuits. Designed primarily for power-supply control, the TL1451A contains an on-chip 2.5V regulator, two error amplifiers, an adjustable oscillator, two dead-time comparators, undervoltage lockout circuitry and dual common-emitter output transistor circuits. The uncommitted output transistors provide common-emitter output capability for each controller. The internal amplifiers exhibit a common-mode voltage range from 1.04 to 1.45V. The dead-time control (DTC) comparator has no offset unless externally altered and can provide 0 to 100% dead time. The on-chip oscillator can be operated by terminating RT and CT. During low VCC conditions, the undervoltage lockout control circuit feature locks the outputs off until the internal circuitry is operational.
Complete PWM power control circuitry
Completely synchronized operation
Internal undervoltage lockout protection
Wide supply voltage range
Internal short-circuit protection
Variable dead time provides control over total range
Internal regulator provides a stable 2.5V Reference supply
Configuration control/print support
Green product and no Sb/Br

Show

TL1451ACD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	500 kHz
Supply Voltage (DC)	3.60V (min)
Number of Outputs	2 Output
Input Voltage (DC)	6.00 V
Output Voltage	50 V
Output Current	20 mA
Number of Positions	16 Position
Power Dissipation	1.09 W
Quiescent Current	1.70 mA
voltage rating	200 mV
Number of Regulated Outputs	2 Output
Switching Frequency	1kHz ~ 500kHz
Thermal Shutdown	No
Topology	Buck, Boost, Flyback
Duty Cycle	100 %
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	3.6V ~ 50V
Supply Voltage (Max)	50 V
Supply Voltage (Min)	3.6 V
Input Voltage	6 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Operating Temperature	-20℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
