AD9716BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1773940
Category:
Digital to Analog, DAC IC
Package:
LFCSP-40
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9716BCPZ Digital to Analog Converter, 12Bit, 125MSPS, Parallel, Serial, 1.8V to 3.3V, CSP, 40Pins
Stock Locations:
Availability:
285 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.04

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

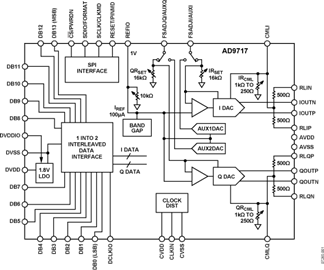

GENERAL DESCRIPTION
The AD9714/AD9715/AD9716/AD9717 are pin-compatible dual, 8-/10-/12-/14-bit, low power digital-to-analog converters (DACs) that provide a sample rate of 125 MSPS. These TxDAC® converters are optimized for the transmit signal path of communication systems. All the devices share the same interface, LFCSP package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD9714/AD9715/AD9716/AD9717 offer exceptional ac and dc performance and support update rates up to 125 MSPS. The flexible power supply operating range of 1.8 V to 3.3 V and low power dissipation of the AD9714/AD9715/AD9716/AD9717 make them well-suited for portable and low power applications.
FEATURES
Power dissipation @ 3.3 V, 2 mA output
37 mW @ 10 MSPS
80 mW @ 125 MSPS
Sleep mode: <3 mW @ 3.3 V
Supply voltage: 1.8 V to 3.3 V
SFDR to Nyquist
84 dBc @ 1 MHz output
75 dBc @ 10 MHz output
AD9717 NSD @ 1 MHz output, 125 MSPS, 2 mA: −151 dBc/Hz
Differential current outputs: 1 mA to 4 mA
Two on-chip auxiliary DACs
CMOS inputs with single-port operation
Output common mode: adjustable 0 V to 1.2 V
Small footprint 40-lead LFCSP Pb-free package
APPLICATIONS
Wireless infrastructures
Picocell, femtocell base stations
Medical instrumentation
Ultrasound transducer excitation
Portable instrumentation
Signal generators, arbitrary waveform generators

Show

AD9716BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	LFCSP-40
Number of Outputs	2 Output
Supply Current	11.0 mA
Number of Channels	2 Channel
Number of Positions	40 Position
Number of Bits	12 Bit
Power Dissipation	80 mW
Sample Rate	125 Msps
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	80 mW
Number of DACs	2 DAC
Supply Voltage	1.8V ~ 3.3V
Supply Voltage (Max)	3.3 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	6 mm
Size-Width	6 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
