AD9978BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC385565
Category:
Specialty Application IC
Package:
LFCSP-40
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9978BCPZ Special Function IC, 14Bit CCD Signal Processor, 1.8V to 1.8V, LFCSP-40
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.04

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details

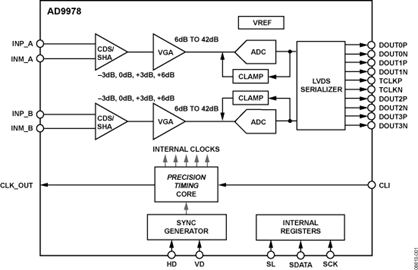

The AD9978 is a highly integrated, dual-channel CCD signal processor for high speed digital video camera applications. Each channel is specified at pixel rates of up to 65 MHz and consists of a complete analog front end with ADC conversion. The _Precision Timing_™ core allows adjustment of the correlated double sampler (CDS) and sample-and-hold amplifier (SHA) clocks with 240 ps resolution at 65 MHz operation. The AD9978 also contains a reduced range, low voltage differential signaling (LVDS) interface for the dual-channel data outputs.
Each analog front end includes black level clamping, a CDS, a VGA, and a 65 MHz, 14-bit ADC. Operation is programmed using a 3-wire serial interface.
Packaged in a space-saving, 6 mm × 6 mm, 40-lead LFCSP, the AD9978 is specified over an operating temperature range of −25°C to +85°C.
**Applications**
* Digital video cameras
* Digital still cameras
* Digital copiers
* Multifunction printers
* High speed industrial cameras
Data Sheet, Rev. SpB, 9/08
### Features and Benefits
Dual AFE channels
1.8 V analog and digital core supply voltage
Serial data output with reduced range LVDS outputs
Differential analog inputs
|
CDS or SHA configuration (CDS bypass) with −3 dB, 0 dB, +3 dB, and +6 dB gain
6 dB to 42 dB, 10-bit variable gain amplifier (VGA)
14-bit, 65 MHz analog-to-digital converter (ADC)
Black level clamp with variable level control
_Precision Timing_ core with 240 ps resolution @ 65 MHz
---|---

Show

AD9978BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	LFCSP-40
Number of Channels	2 Channel
Number of Positions	40 Position
Number of Bits	14 Bit
Power Dissipation	250 mW
Sample Rate	65000 KSPS
Resolution (Bits)	14.0 Bit
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage	1.8 V
Supply Voltage (Max)	1.8 V
Supply Voltage (Min)	1.8 V
Input Voltage	0.7 V
	Show
Size-Height	0.83 mm
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
