Poly Phase Multifunction Energy Metering IC with Tamper Detection and Low Power Mode
Stock Locations:
Availability:
211 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0
Updated at 19/05/2024 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
Product Details

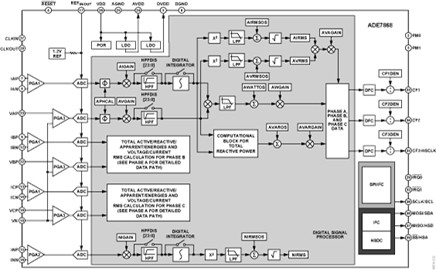

The ADE7868 is a high accuracy, 3-phase electrical energy measurement IC with serial interfaces and three flexible pulse outputs. The ADE7868 incorporates second-order Σ-Δ ADCs, a digital integrator, reference circuitry, and all the signal processing required to perform total (fundamental and harmonic) active, reactive and apparent energy measurement, and rms calculations. A fixed function digital signal processor (DSP) executes this signal processing. The ADE7868 is suitable to measure active, reactive, and apparent energy in various 3-phase configurations, such as WYE or DELTA services, with both three and four wires. The ADE7868 provides system calibration features for each phase, that is, rms offset correction, phase calibration, and gain calibration. The CF1, CF2 and CF3 logic outputs provide a wide choice of power information: total active/reactive/apparent power or sum of current rms values.
The ADE7868 has waveform sample registers that allow access to all ADC outputs. The device also incorporates power quality measurements such as short duration low or high voltage detections, short duration high current variations, line voltage period measurement and angles between phase voltages and currents. Two serial interfaces can be used to communicate with the ADE7868: SPI or I2C while a dedicated high speed interface, HSDC (High Speed Data Capture) port, can be used in conjunction with I2C to provide access to the ADC outputs and real time power information. The ADE7868 has also two interrupt request pins, IRQ0 and IRQ1, to indicate that an enabled interrupt event has occurred. Three specially designed low power modes ensure the continuity of the energy accumulation when the ADE7868 is in tampering situation. The ADE7868 is available in 40-lead LFCSP lead free package.
### Features and Benefits
Highly accurate; supports EN 50470-1, EN 50470-3, IEC 62053-21, IEC 62053-22 and IEC 62053-23
Compatible with 3-phase, 3 or 4 wire (delta or wye) and other 3-phase services
Supplies total (fundamental and harmonic) active/reactive/ apparent energy on each phase and on the overall system
Less than 0.1% error in active and reactive energy over a dynamic range of 1000 to 1 at 25°C
Less than 0.2% error in active and reactive energy over a dynamic range of 3000 to 1 at 25°C
Supports current transformer and di/dt current sensors
Dedicated ADC channel for the neutral current input
Less than 0.1% error in voltage and current rms over a dynamic range of 1000 to 1 at 25°C
Supplies sampled waveform data on all 3 phases and neutral current
