ADG408BNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC611461
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADG408BNZ 8:1 Analog Multiplexer IC, Single, 40Ω, 12V, DIP-16
Stock Locations:
Availability:
165 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 28.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADG408 series monolithic CMOS Analog Multiplexer comprising eight single channels. The IC switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1 and A2. An EN input on both devices is used to enable or disable the device. When the device is disabled, all channels are switched off. The device is designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed and low on resistance. Each channel conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All channels exhibit break-before-make switching action, preventing momentary shorting when switching channels. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
VSS to VDD Analog signal range
Low power (ISUPPLY <75µA)
Fast switching
Break-before-make switching action
Plug-in replacement for DG408

Show

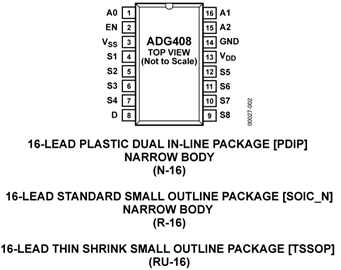

ADG408BNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	12.0V (max)
Number of Outputs	1 Output
Contacts Type	DPST-NC
Supply Current	100 µA
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	16 Position
Drain to Source Resistance (on) (Rds)	100 Ω
Power Dissipation	0.47 W
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
Supply Voltage	12V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	12 V
	Show
Size-Length	20.07 mm
Size-Width	6.35 mm
Size-Height	3.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
