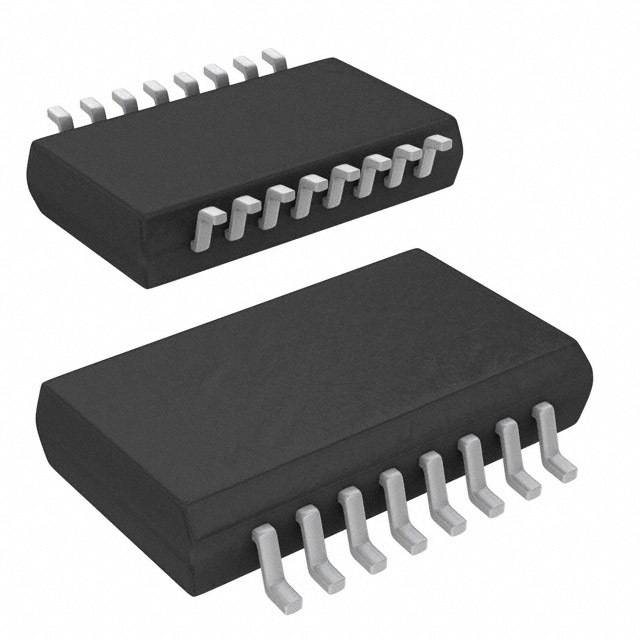

Image is for your reference only,please check specifications for details

ADG408BR - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC37221835
Category:
Multiplexer IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
Analog Multiplexer Single 8: 1 16Pin SOIC Analog Multiplexer Single 8: 1 16Pin SOIC
Stock Locations:
Availability:
1,733 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.97

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The ADG408/ADG409 are monolithic CMOS analog multiplexers comprising eight single channels and four differential channels, respectively. The ADG408 switches one of eight inputs to a common output as determined by the 3-bit binary address lines A0, A1, and A2. The ADG409 switches one of four differential inputs to a common differential output, as determined by the
2-bit binary address lines A0 and A1. An EN input on both devices is used to enable or disable the device. When the device is disabled, all channels are switched off.
FEATURES
44 V supply maximum ratings
VSS to VDDanalog signal range
Low on resistance (100 Ω maximum)
Low power (ISUPPLY< 75 μA)
Fast switching
Break-before-make switching action
Plug-in replacement for DG408/DG409
APPLICATIONS
Audio and video routing
Automatic test equipment
Data acquisition systems
Battery-powered systems
Sample-and-hold systems
Communication systems

Show

ADG408BR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Number of Outputs	1 Output
Contacts Type	DPST-NC
Supply Current	100 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Power Dissipation	600 mW
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	600 mW
Supply Voltage	12V ~ 15V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
