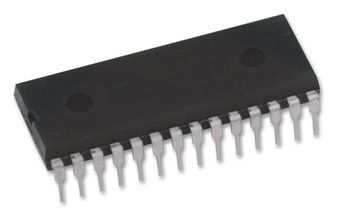

Image is for your reference only,please check specifications for details

ADG507AKNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC877045
Category:
Multiplexer IC
Package:
PDIP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADG507AKNZ 8:1 Analog Multiplexer IC, Dual, 280Ω, 10.8V to 16.5V, DIP-28
Stock Locations:
Availability:
275 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.89

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADG507A series CMOS monolithic analog multiplexer with dual 8 channels. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. The device has TTL and 5V CMOS logic compatible digital inputs. The device is designed on an enhanced LC2 MOS process, which gives an increased signal capability of VSS to VDD and enables operation over a wide range of supply voltages. These multiplexers also feature high switching speeds and low RON.
VSS to VDD Analog signal range
Low power dissipation (28mW maximum)
Low leakage (20pA typical)
Superior alternative to - DG507A, Hl-507
Break-before-make switching action
20pA Low leakage current

Show

ADG507AKNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	PDIP-28
Supply Voltage (DC)	16.5V (max)
Number of Outputs	2 Output
Supply Current	600 nA
Number of Circuits	2 Circuit
Number of Channels	8 Channel
Number of Positions	28 Position
Drain to Source Resistance (on) (Rds)	450 Ω
Power Dissipation	470 mW
Number of Inputs	16 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
Supply Voltage	10.8V ~ 16.5V
Supply Voltage (Max)	16.5 V
Supply Voltage (Min)	10.8 V
	Show
Size-Length	39.75 mm
Size-Width	13.97 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
