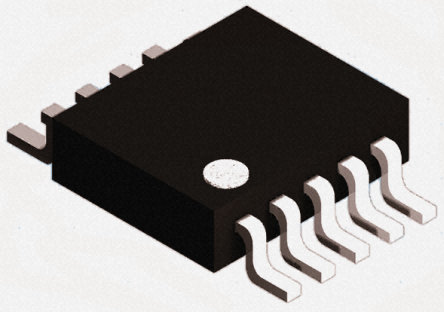

Image is for your reference only,please check specifications for details
- ADG621BRMZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC435814
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:MSOP-10
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADG621BRMZ Аналоговый ключ, двухканальный, SPST, 2 канала, 4 Ом, от ±2.7 В до ±5.5 В, MSOP, 10 выводов
-
Stock Locations:
-
Availability:5 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.13
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Микросхема ADG621BRMZ представляет собой КМОП-двойной однополюсный однопозиционный (SPST) переключатель, который одинаково хорошо проводит сигнал в обоих направлениях во включенном состоянии. ADG621 содержит два независимых переключателя и обеспечивает низкое сопротивление во включенном состоянии 4 Ом, которое согласовано в пределах 0,25 Ом между каналами. Этот переключатель также обеспечивает низкое энергопотребление при высоких скоростях переключения. Он идеально подходит для применения в таких устройствах, как автоматическое тестовое оборудование, системы маршрутизации питания, схемы выборки и хранения, а также системы сбора данных.
- Максимальное сопротивление во включенном состоянии 5,5 Ом
- Максимальная нелинейность сопротивления во включенном состоянии 0,9 Ом
- Работа от одного/двух источников питания
- Работа с полным размахом сигнала (rail-to-rail)
- Типичное энергопотребление <0,01 мкВт
- Входы, совместимые с уровнями ТТЛ/КМОП
- Устройство чувствительно к статическому электричеству. При работе с устройством соблюдайте соответствующие меры предосторожности.
ADG621BRMZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package (SI) | SOP |
| Case/Package | MSOP-10 |
| Number of Outputs | 2 Output |
| Contacts Type | SPST |
| Supply Current | 1 nA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 10 Position |
| Number of Bits | 2 Bit |
| Power Dissipation | 0.00000001 W |
| Bandwidth | 230 MHz |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 230 MHz |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | PB free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
