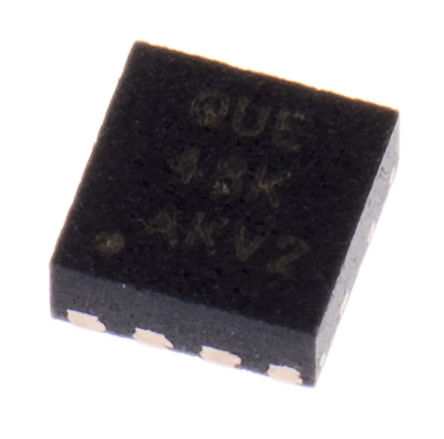

Image is for your reference only,please check specifications for details

OPA2277AIDRMT - TI
Manufacturer:
TI
ManyChip's Part#:
MC14799662
Category:
Operational Amplifier, OP Amp IC
Package:
VSON-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS OPA2277AIDRMT Operational Amplifier, Dual, 2 Amplifier, 1MHz, 0.8V/µs, ± 2V to ± 18V, SON, 8Pins
Stock Locations:
Availability:
96 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 28.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The OPA277 series precision op amps replace the industry standard OP-177. They offer improved noise, wider output voltage swing, and are twice as fast with half the quiescent current. Features include ultra low offset voltage and drift, low bias current, high common-mode rejection, and high power supply rejection. Single, dual, and quad versions have identical specifications for maximum design flexibility.
FEATURES
● ULTRA LOW OFFSET VOLTAGE: 10µV
● ULTRA LOW DRIFT: ±0.1µV/°C
● HIGH OPEN-LOOP GAIN: 134dB
● HIGH COMMON-MODE REJECTION: 140dB
● HIGH POWER SUPPLY REJECTION: 130dB
● LOW BIAS CURRENT: 1nA max
● WIDE SUPPLY RANGE: ±2V to ±18V
● LOW QUIESCENT CURRENT: 800µA/amplifier
● SINGLE, DUAL, AND QUAD VERSIONS
● REPLACES OP-07, OP-77, OP-177
APPLICATIONS
●TRANSDUCER AMPLIFIER
●BRIDGE AMPLIFIER
● TEMPERATURE MEASUREMENTS
● STRAIN GAGE AMPLIFIER
●PRECISION INTEGRATOR
●BATTERY POWERED INSTRUMENTS
●TEST EQUIPMENT

Show

OPA2277AIDRMT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON-8
Supply Current	790 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	115 dB
Input Offset Drift	100 nV/K
Bandwidth	1 MHz
Slew Rate	800 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	35 µV
Input Bias Current	500 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	115 dB
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
