Description
- Product Details
- The ADG736 is a monolithic device comprising two independently selectable CMOS single pole, double throw (SPDT) switches. These switches are designed using a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents, and wide input signal bandwidth.
- The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.
- The ADG736 operates from a single 1.8 V to 5.5 V supply, making it ideally suited to portable and battery-powered instruments.
- Each switch conducts equally well in both directions when on, and each has an input signal range that extends to the power supplies. The ADG736 exhibits break-before-make switching action.

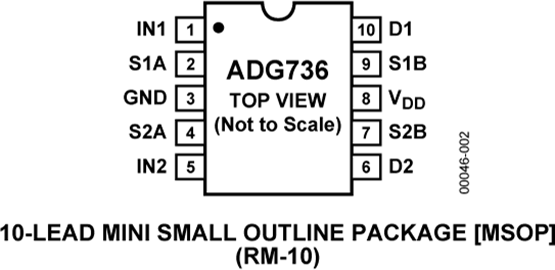

- The ADG736 is available in a 10-lead MSOP package.
- **Product Highlights**
- 1.8 V to 5.5 V Single-Supply Operation. The ADG736 offers high performance, including low on resistance and fast switching times. It is fully specified and guaranteed with 3 V and 5 V supply rails.
- Very Low RON (4.5 Ω Maximum at 5 V, 8 Ω Maximum at 3 V). At a supply voltage of 1.8 V, RON is typically 35 Ω over the temperature range.
- Low On Resistance Flatness.
- −3 dB Bandwidth > 200 MHz.
- Low Power Dissipation. CMOS construction ensures low power dissipation.
- Fast tON/tOFF.
- Break-Before-Make Switching Action.
- 10-Lead MSOP Package.
- **
- **Applications**
- **
- USB 1.1 signal switching circuits
- Cell phones
- PDAs
- Battery-powered systems
- Communications systems
- Sample-and-hold systems
- Audio signal routing
- Audio and video switching
- Mechanical reed relay replacement
- ### Features and Benefits
- 1.8 V to 5.5 V single supply
- Automotive temperature range: −40°C to +125°C
- 2.5 Ω (typical) on resistance
- Low on resistance flatness
- −3 dB bandwidth > 200 MHz
- Rail-to-rail operation10-lead
- MSOP package
- Fast switching times
- TON 16 ns
- TOFF 8 ns
- Typical power consumption (<0.01 μW)
- TTL-/CMOS-compatible
- Qualified for automotive applications
ADG736BRM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package (SI) | SOP |
| Case/Package | MSOP-10 |
| Number of Outputs | 4 Output |
| Contacts Type | SPDT |
| Supply Current | 1 nA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Bits | 2 Bit |
| Power Dissipation | 0.315 W |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 200 MHz |
| Power Dissipation (Max) | 315 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.8 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
| HK STC License | NLR |
