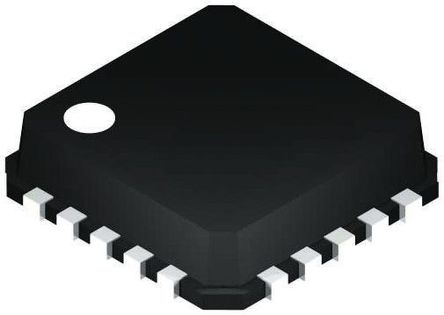

ADG758BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC593700
Category:
Multiplexer IC
Package:
LFCSP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADG758BCPZ 8:1 Analog Multiplexer IC, Single, 3Ω, 1.8V to 5.5V, LFCSP-20
Stock Locations:
Availability:
202 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.06

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADG758BCPZ is a low voltage, CMOS Analog Multiplexer comprising eight single channel. The ADG758 switches one of eight inputs (S1 to S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1 and A2. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF. These switches are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low ON resistance and leakage currents. ON resistance is in the region of a few ohms and is closely matched between switches and very flat over the full signal range. These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies.
3R ON Resistance
0.75R ON Resistance flatness
100pA Leakage currents
14ns Switching times
Low power consumption
TTL-/CMOS-Compatible inputs
<0.01µW Low power consumption
Guaranteed break-before-make switching action

Show

ADG758BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	LFCSP-20
Supply Voltage (DC)	1.80V (min)
Number of Outputs	1 Output
Contacts Type	DPST-NC
Supply Current	1 nA
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Drain to Source Resistance (on) (Rds)	2.50 Ω
Power Dissipation	0.00000001 W
Bandwidth	55 MHz
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	55 MHz
Supply Voltage	1.8V ~ 5.5V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
