The TPS2041A through TPS2044A and TPS2051A through TPS2054A power-distribution
switches are intended for applications where heavy capacitive loads and short circuits are likely to be encountered. These devices incorporate 80-mΩ N-channel MOSFET high-side power switches for power-distribution systems that require multiple power switches in a single package. Each switch is controlled by an independent logic enable input. Gate drive is provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize
current surges during switching. The charge pump requires no external components and allows operation from supplies as low as 2.7 V.
80-mΩHigh-Side MOSFET Switch
500 mA Continuous Current Per Channel
Independent Thermal and Short-Circuit Protection With Overcurrent Logic Output
Operating Range. . . 2.7 V to 5.5 V
CMOS- and TTL-Compatible Enable Inputs
2.5-ms Typical Rise Time
Undervoltage Lockout
10 µA Maximum Standby Supply Current for Single and Dual (20 µA for Triple and Quad)
Bidirectional Switch
Ambient Temperature Range, 0°C to 85°C
ESD Protection
UL Listed – File No. E169910

Show

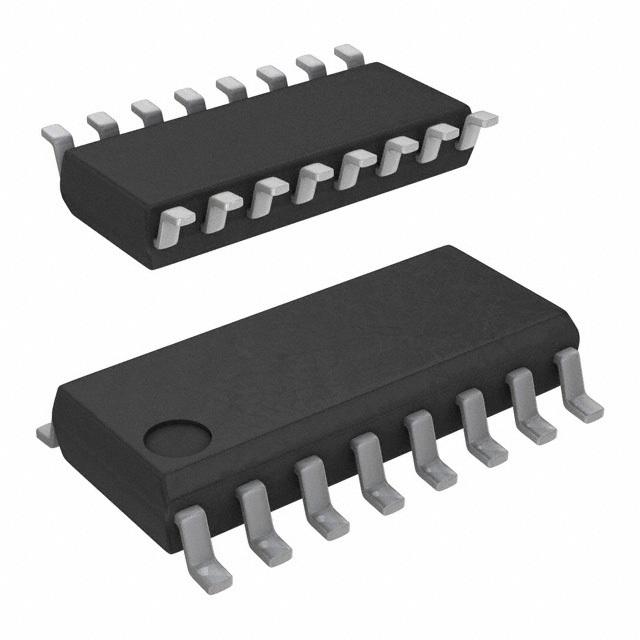

TPS2044AD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.50V (max)
Number of Outputs	4 Output
Input Voltage (DC)	5.50 V
Output Voltage	6.30 V
Output Current	≤500 mA
Number of Channels	4 Channel
Drain to Source Resistance (on) (Rds)	80.0 mΩ
Polarity	N-Channel
Power Dissipation	1123 mW
Continuous Drain Current (Ids)	500 mA
Rise Time	3000 µs
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	500 mA
Fall Time	4400 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1123 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
Input Voltage	2.7V ~ 5.5V
	Show
Operating Temperature	0℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
