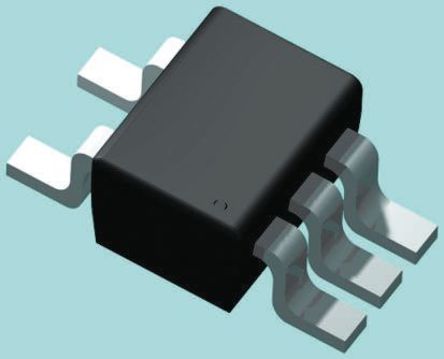

Image is for your reference only,please check specifications for details

NCP500SN18T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC21992517
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
NCP500SN18T1G, LDO Voltage Regulator, 150mA, 1.8V 2.5%, 0 to 6Vin, 5Pin TSOP
Stock Locations:
Availability:
550 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.44

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NCP500SN18T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Current Rating	150 mA
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	6.00V (max)
Output Voltage	1.8 V
Output Current	150 mA
Supply Current	1µA ~ 300µA
Number of Positions	5 Position
Polarity	P-Channel
Quiescent Current	300 µA
voltage rating	270 mV
Input Bias Current	3 nA
Input Voltage (Max)	6 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2.5 %
Supply Voltage	0V ~ 60V
Input Voltage	≤6 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
