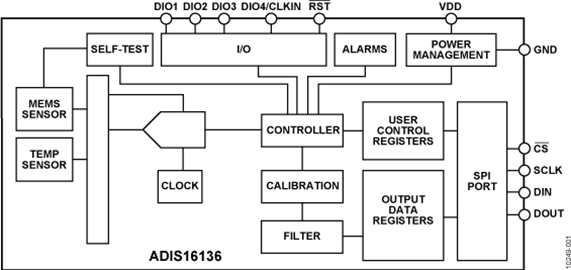

Image is for your reference only,please check specifications for details
- ADIS16136AMLZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1577150
-
Category:Gyroscopes Sensor, Gyroscope
-
Package:Module
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADIS16136AMLZ MEMS Gyroscope, Digital, ± 450°/s, 4.75V, 5.25V, Module
-
Stock Locations:
-
Availability:260 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2488.21
Updated at 30/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- With this ADIS16136AMLZ gyroscope from Analog Devices you"ll always get the most accurate measurements of instantaneous velocity or the rate of change of velocity of the object to which it is attached. This device has a maximum of 5.25 V. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. This device is made with mems technology.
ADIS16136AMLZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 24 Pin |
| Case/Package | Module |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 120 mA |
| Bandwidth | 380 Hz |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 380 Hz |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 36 mm |
| Size-Width | 44 mm |
| Size-Height | 14 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | 7A994 |
