ADIS16448BMLZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC13420346
Category:
Motion Sensor
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADIS16448BMLZ MEMS Accelerometer, Precision, Digital, X, Y, Z, ± 18g, 3.15V, 3.45V, Module
Stock Locations:
Availability:
1,200 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1512.9

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

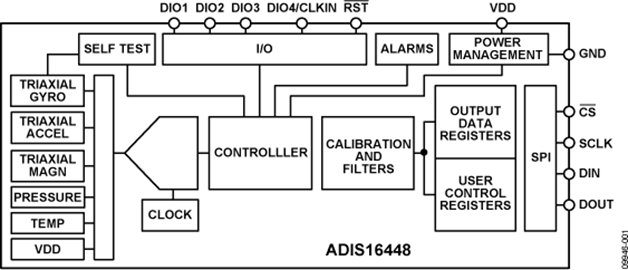

The ADIS16448BMLZ is an complete Inertial Sensor that includes a tri-axial gyroscope, a tri-axial accelerometer, a tri-axial magnetometer and pressure sensors. This combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias and alignment. As a result, this sensor has its own dynamic compensation formulas that provide accurate sensor measurements. Provides a simple, cost-effective method for integrating accurate, multi-axis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. The SPI and register structures provide a simple interface for data collection and configuration control.
Tri-axial digital gyroscope with digital range scaling
±18g Minimum tri-axial digital accelerometer
±1.9gauss Minimum tri-axial digital magnetometer
10 to 1200mbar Digital barometer
Autonomous operation and data collection
205ms Start-up time
SPI-compatible serial interface
Embedded temperature sensor
Programmable operation and control
3.15 to 3.45V Single-supply operation
Product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges.

Show

ADIS16448BMLZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Supply Voltage (DC)	3.15V (min)
Supply Current	76 mA
Number of Positions	20 Position
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.45 V
Supply Voltage (Min)	3.15 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	Compliant with Exemption
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
