Description

The ADM213ARSZ is a Line Driver/Receiver intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12V is not available. The ADM213 features a low power shutdown mode that reduces power dissipation to less than 5µW, making it ideally suited for battery-powered equipment. The ADM213 has an active low shutdown and an active high receiver-enable control. Two receivers of the ADM213 remain active during shutdown. This feature is useful for ring indicator monitoring. It includes two internal charge pump voltage converters that allow operation from a single 5V supply. This part converts the 5V input power to the ±10V required for RS-232 output levels.
0.1 to 10µF Capacitors
120kbps Data rate
On-board DC-DC converters
±9V Output swing with 5V supply
15mW Low power
±30V Receiver input levels
Latch-up free
Pin-compatible to MAX206-211/213

Show

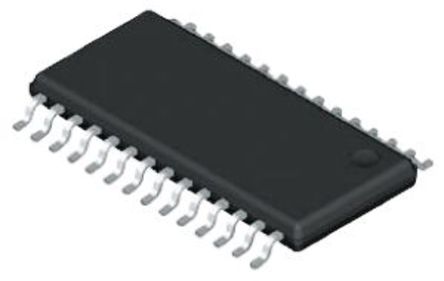

ADM213ARSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SSOP-28
Supply Voltage (DC)	4.50V (min)
Supply Current	13 mA
Number of Positions	28 Position
Data Rate	120 kbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	10.2 mm
Size-Width	5.3 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
